XOB32 - Programmable oscillator

Ultra-miniature 3.2 x 2.5mm SMD programmable CMOS oscillator. Stability from ±25ppm -40° to +85°C. Excellent jitter and phase noise performance. Enable/Disable function as standard. Available with short leadtimes at any frequency within the range.


3.20 x 2.50mm	MHz Range	+3.3V

Make an enquiry

download data sheet

Features

Factory configurable part for short lead times

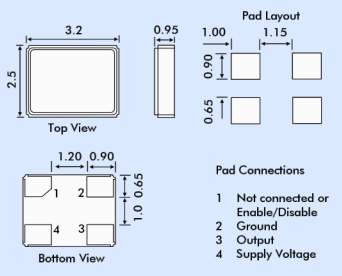

Ultra-miniature 3.2 x 2.5 x 0.95mm package
Frequency Range 1.0MHz to 200.0MHz
Tristate (Enable/Disable) function as standard
Supply voltage 1.8, 2.5 or 3.3 Volts
Jitter 70ps typical, phase noise
Low phase noise -114dBc/Hz @ 1kHz offset (133.0MHz)

Typical Applications

Specifications


Frequency Range Supply 1.8 Volts: 1.0MHz to 110.0MHz Supply 2.5 Volts: 1.0MHz to 166.0MHz Supply 3.3 Volts: 1.0MHz to 200.0MHz
Supply Voltage: 1.8, 2.5 or 3.3Volts ±10%
Output Logic: LVCMOS
Frequency Stability: From ±25 over temperature
Rise/Fall Time: 2ns typical.
Output Voltage: HIGH ‘1’: 90%Vdd minimum LOW ‘0’: 10%Vdd maximum
Output Load 15pF
Duty Cycle: 50%±5% typical
Operating Temperature Commercial: 0° to +70°C Industrial: -40° to +85°C
Storage Temperature: -55 to +105°C
Start-up Time: 5ms max.
Ageing: ±3ppm max. in first year at 25°C
Tristate Function (Pad 1): Enable/Disable function is standard for XOB32. Output (Pad 3) is active if Pad 1 is not connected or Pad 1 is 'HIGH'. Output is high impedance when 'LOW' or GROUND is applied to Pad 1
